Summary

This article focus on how to setup Jumbo packets on all your various devices in your network. This includes Windows 10+, Linux, Mac OS X+.

What is Jumbo packet or Jumbo Frame?

A jumbo frame is an Ethernet frame with a payload greater than the standard maximum transmission unit (MTU) of 1,500 bytes. Jumbo frames are used on local area networks that support at least 1 Gbps and can be as large as 9,000 bytes. – Definition from WhatIs.com

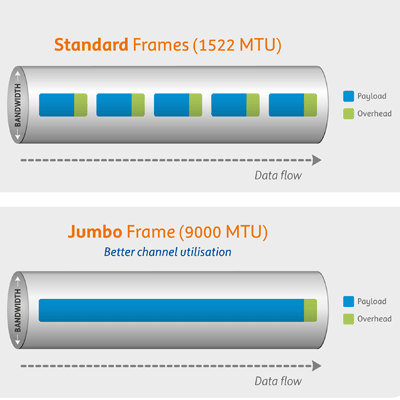

Jumbo Framess

When you purchase [1Gb] Gigabit or 10GB switches and routers lately, you may have seen something on the specifications that may say something like this “supports Jumbo packets” or “Jumbo Frame support”. If you are one of the lucky ones that has a switch that supports Jumbo packets, chances are that you may not have configured your devices to leverage this Jumbo packet technology and may be suffering from network lags that could have been easily avoided.

If you are shopping for a new switch then take a look at a few of the Trendnet switches that supports jumbo packets:

How will this help me?

Suppose you are copying a very large file (like a movie or your mp3 collection from one computer to another computer) or streaming movies or files, then it requires all three parties to have enabled jumbo packet support for the transmission to be effective. The sender (source-computer), the receiver (target-computer) and the switch (middle-man). If any one of them is not configured for jumbo packet support then you’re not really moving data in the most optimal way possible.

Note: This is not applicable to WiFi connections since wifi speeds are not nearly close to direct wired at this time.

So let’s get to business on how you can configure Jumbo Frame/Packet support for each of your devices in your network.

MTU (Maximum Transfer Unit)

The Jumbo Frames support or Jumbo Packets are controlled at your network card level and is typically associated with MTU (maximum transfer unit) property of your network settings. Most OS’s have a default of 1,500 bytes. And Jumbo Frames can support upto 9,000 bytes per packet.

Determine what your router or switch supports by looking into the Router or Switch specifications. You will need to set the MTU parameter accordingly in the next sections.

Configuring Jumbo Packets/Jumbo Frames in Linux

CentOS/Red Hat/Ubuntu variety of Linux

123456789
# To check your MTU size
$ ip link show | grep mtu

# To Set a new mtu size
$ ip link set eth0 mtu 9000

# Above change is *only* temporary, when you reboot your computer you
# will be back to 1500.
# To make the above change permanent add this as part of your startup script

Pre-CentOS 7 versions of Linux (that supports ifconfig)

1
ifconfig eth0 mtu 9000 up

Mac OS X

12345
# To check your MTU size
$ networksetup -getMTU en0

# To Set a new mtu size
$ networksetup -setMTU en0 9000

Also follow this article on how to do this using your Network setting GUI: Changing it on the Mac GUI

Windows 10 (not tested)

Have Windows, let me know if this works

 1 2 3 4 5 6 7 8 91011
# Open command-prompt in Administrative mode

# To check your MTU size
$ netsh interface ipv4 show subinterfaces

# To Set a new mtu size
$ netsh interface ipv4 set subinterface "Local Area Connection" mtu=nnnn store=persistent
# where
#   Local Area Connection is the name of the network connection on your
#     computer, from the list obtained above.
#   nnnn is the desired value for MTU.

Cheers!
